Product Details

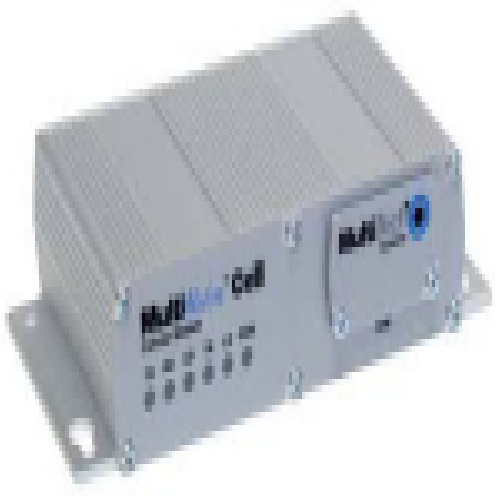

Multi-Tech MultiVOIP FX MVP810-FX - VoIP gateway - 8 ports - EN, Fast EN
8PT FXSFXO SIP GTW US/CANThe MultiVOIP FX SIP gateway provides
toll-free voice and fax communications over the Internet or Intranet.
The MultiVOIP FX gateway connects directly to phones, fax machines, key
systems, PSTN lines, or a PBX to provide real-time, toll-quality voice
connections to any office on your VOIP network. The MultiVOIP FX
gateway is designed to maximize the investments you've already made in
your data and voice network infrastructure.
Product Description Multi-Tech MultiVOIP FX MVP810-FX - VoIP gateway
Device Type VoIP gateway
Enclosure Type External
Dimensions (WxDxH) 17.3 in x 8.4 in x 1.7 in
Weight 7.5 lbs
Localization Canada, United States
Ports Qty 8
Data Link Protocol Ethernet, Fast Ethernet
Remote Management Protocol HTTP
VoIP Protocols SIP
Telephony Interfaces 8 line/phone (FXO/FXS)
Features DiffServ support, firmware upgradable, Quality of Service (QoS)
Power AC 120/230 V ( 50/60 Hz )
Manufacturer Warranty 2 years warranty
General
Device Type VoIP gateway
Width 17.3 in
Depth 8.4 in
Height 1.7 in
Weight 7.5 lbs
Localization Canada, United States
Networking
Form Factor External
Ports Qty 8
Connectivity Technology Wired
Data Transfer Rate 100 Mbps
Data Link Protocol Ethernet, Fast Ethernet
Remote Management Protocol HTTP
Features DiffServ support, firmware upgradable, Quality of Service (QoS)
Compliant Standards IEEE 802.1p
IP Telephony
VoIP Protocols SIP
Voice Codecs G.711, G.723, G.729, G.726, T.38
Telephony Interfaces 8 line/phone (FXO/FXS)
IP
Telephony Features Comfort noise generation (CNG), voice activity
detection (VAD), echo cancellation (G.168), adaptative jitter buffer,
echo cancellation (G.165), bad frame interpolation, forward error
correction, tunable latency
Expansion / Connectivity
Interfaces 8 x phone line - FXS/FXO - RJ-11
1 x network - Ethernet 10Base-T/100Base-TX - RJ-45
1 x management - RS-232C - RJ-45
Miscellaneous
Compliant
Standards CE, FCC Class A certified, cUL, EN 60950, EN 61000-3-2,
EN55022, EN 61000-3-3, EN55024, UL 60950, ACA TS001, FCC Part 68, FCC
Part 15, CS-03, ACA TS031, TBR3
Power
Power Device Power adapter - external
Voltage Required AC 120/230 V ( 50/60 Hz )
Power Consumption Operational 46 Watt
Manufacturer Warranty
Service & Support 2 years warranty
Service & Support Details Limited warranty - 2 years
