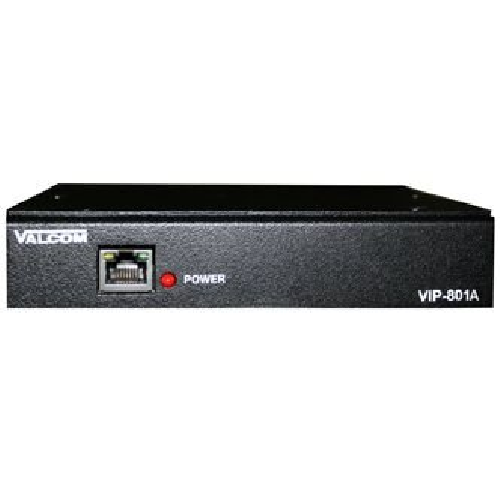

- Valcom networked page zone extender
- Enables voice accessto a single zone of one-way paging over an IP-based LAN/WAN (this allows page zone extension anywhere on the network)
- 1 Audio output
- 1 Audioinput
- 2 Programmable form C relay closures
- RJ-45 for network connection
- No server required
- 1 to 11 Digit dial plans
- Easy Windows based setup
- AUX Audio input
- Contactclosure available for: audio indication and door unlocking
- Protocols DHCP, IGMP v3, UDP, TCP, HTTP, Telnet, FTP
- Voice Algorithm: G.711 (64kbits/s)(ulaw) / echo suppression
- Voltage: 24 Vdc @ 250 mA; IEEE 802.3af compatible, class 3 device; regulatory: FCC Part 15 Class A
- Input: analog device interface (600 ohm input impedance, VOX and contact closure input)
- Output: analog output interface (less than 50 ohms output impedance; frequency response: 200 Hz - 3400 Hz; relay closure available)
- Does not include power supply (see VC-VIP-324)
