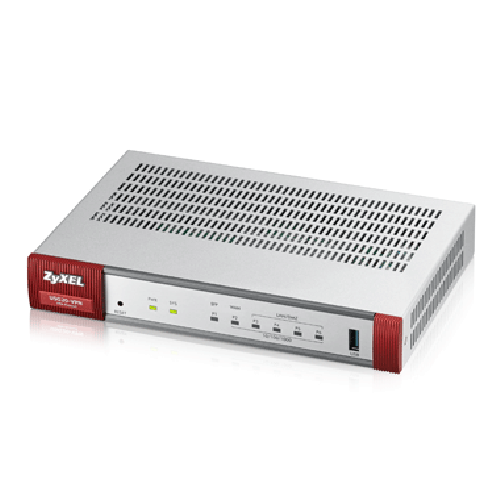

The ZyWALL USG (Unified Security Gateway) is the "third generation" ZyWALL featuring an all-new platform. It provides greater performance protection as well as a deep packet inspection security solution for small businesses to enterprises alike. This multilayered security safeguards your organization's customer and company records, intellectual property and critical resources from external and internal threats.
General
Device Type: Firewall
Width: 11.8 in
Depth: 7.4 in
Height: 1.7 in
Weight: 3.64 lbs
Networking Form Factor: Rack-mountable
Connectivity Technology: Wired
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol: L2TP, IPSec, SMTP, POP3
Routing Protocol: OSPF, RIP-1, RIP-2, BGP
Remote Management Protocol: SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS
Performance: Firewall throughput: 2.3 Gbps ¦ VPN throughput: 810 Mbps ¦ Intrusion detection and prevention throughput: 1.15 Gbps ¦ Antivirus throughput: 800 Mbps ¦ Unified Threat Management (UTM) throughput: 800 Mbps
Capacity: Concurrent TCP sessions: 1000000 ¦ Concurrent IPSec VPN tunnels: 300 ¦ Concurrent SSL VPN users: 150 ¦ Virtual interfaces (VLANs): 64 ¦ Concurrent logins: 200 ¦ Manageable access points: 8
Status Indicators: Power, system
Features: Firewall protection, routing, DHCP support, NAT support, VPN support, PAT support, SNAT support, load balancing, LDAP support, VLAN support, Syslog support, DoS attack prevention, content filtering, ALG support, dynamic DNS server, IPv6 support, antivirus analysis, High Availability, firmware upgradable, DDos attack prevention, tunneling, IPSec Vir
Encryption Algorithm: DES, Triple DES, MD5, IKE, SSL, SHA-1, PKI, 256-bit AES, IKEv2, 512-bit SHA-2
Authentication Method: Secure Shell (SSH), RADIUS, X.509 certificates, LDAP, Active Directory, Extensible Authentication Protocol (EAP), XAUTH authentication
Compliant Standards: IEEE 802.1Q, X.509
Expansion / Connectivity Interfaces: 7 x 1000Base-T - RJ-45 ¦ 1 x - SFP (mini-GBIC) ¦ 2 x USB - Type A ¦ 1 x console - DB-9
Miscellaneous Included Accessories: Rack mount kit
Cables Included: Power cable
MTBF: 529,688.2 hour(s)
Compliant Standards: CSA, ICSA IPSec certified, ICSA Firewall certified, VCCI Class B ITE, ICSA Antivirus, CSA 22.2 No. 60950, C-Tick Class B, FCC Part 15 B, EMC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE
Power Power Device: External power adapter
Dimensions & Weight (Shipping) Shipping Width: 13.8 in
Shipping Depth: 6 in
Shipping Height: 9.6 in
Shipping Weight: 6.24 lbs
Environmental Parameters Min Operating Temperature: 32 °F
Max Operating Temperature: 104 °F
Humidity Range Operating: 10 - 90% (non-condensing)
