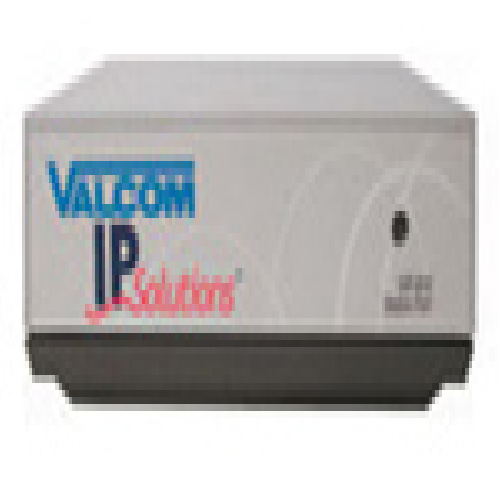

VOIP, NETWORKED STATION PORT
Network Station Port connects to a FXO port, loop start trunk port or dedicated analog telephone terminal devices and is connected to an IP-based LAN/WAN. Operates with both single line telephones and/or PagePac Station DoorPhone and can be used for handset paging control. Phones within the network can dial each other and intercom calls can be routed to a specific telephone for assistance. Paging handset can access any zone in the system and ALL CALL is provided.
Features:
- No server required
- Recognition of DTMF tones
- Generation of DTMF tones
- Two digit dial plan
- No dial/auto destination
- Easy windows based setup
- Paging access
- Allows analog headsets to access paging via LAN/WAN
- Applications:
- VoIP remote handset paging system access to networked VIP-800 audio adapters
- Point to point or multi-point communication to other telephones and PagePac station doorphone call in stations
- Ringdown circuit
- Information phones - using ringdown with 2500 set
- Input:
- Analog device line interface-
- Connects to FXO, Analog telephone set or Loop Start Trunk Port
- Max 3 Ringer Equivalents (3 REN)
- Loop Current: 40 Ma Max
UPC 799111008967
