WEATHER PROOF ENCLOS. (YELLOW)

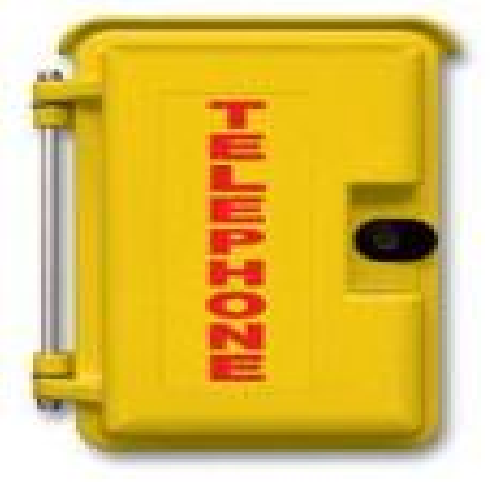

The VE-9x12 and VE-9x20 provide the ultimate in weather protection for your Viking product!
The enclosures are constructed of cast aluminum and are made for years of outdoor service. The heavy aluminum doors are labeled "Telephone" and have a gasket seal to keep out even the harshest weather.
The VE-9x12 is available with two adapter panels that allow multiple Viking products to be installed
Both the VE-9x12 and VE-9x20 are available in two high visibility colors: safety yellow or emergency red.
An optional lock (VE-PBL) is also available for applications where security is a concern.

Applications
Parking lots
Maintenance areas
Building exteriors
Swimming pools
Play grounds
Roadside help areas

Features
Heavy cast aluminum construction
Gasket sealed door
Drip guard
3/4" NPT conduit openings
Push-button Latch
Available in two colors: safety yellow and emergency red
Hardware included
Universal mounting adapters for multiple products
Compatible with these Viking products: E-1600A, E-1600-03B, E-1600-45A, E-20A, K-1500P-W, K-1900W-2, W-2000A

Specifications
Dimensions: Overall - 235mm x 324mm x 203mm (9.25" x 12.75" x 8"), Approximate Maximum Internal Clearance - 129mm x 285mm x 114mm (5.75" x 10.0" x 6.75")
Shipping Weight: 5.4 kg (12 lbs.)
Colors: Red with white lettering or yellow with black lettering
Conduit opening: ¾" NPT with plug, top and bottom
