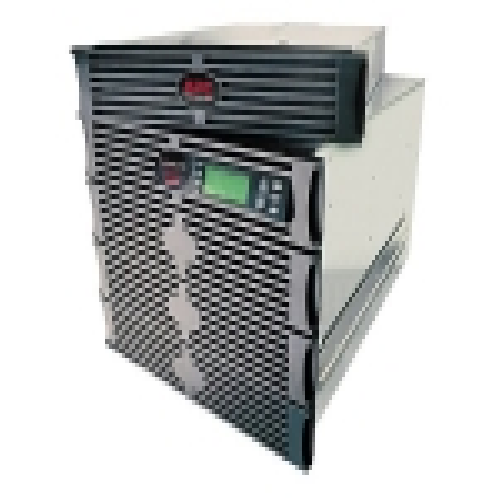

SYH2K6RMT-P1

Our Products: Battery/PowerProtector > Battery Backup
SKU: SYH2K6RMT-P1
Add to Wishlist Add to Wishlist
SYH2K6RMT-P1
SYH2K6RMT-P1
Previous Item Previous Item   Next Item Next Item
Product Details


Output Power Capacity
1400Watts /2000 VA
Max Configurable Power
4200Watts /6000 VA
Nominal Output Voltage
120V, 208V
Output Voltage Note
Configurable for 208 or 240 nominal output voltage
Efficiency at Full Load
85.0%
Output Voltage Distortion
Less than 5% at full load
Output Frequency (sync to mains)
57 - 63 Hz for 60 Hz nominal
Crest Factor
up to 5 : 1
Topology
Double Conversion Online
Waveform Type
Sine wave
Output Connections
(12) NEMA 5-20R NEMA 5-20R
(2) NEMA L6-20R NEMA L6-20R
Bypass
Internal Bypass (Automatic and Manual)

Input

Nominal Input Voltage
208V
Input Frequency
50/60 Hz +/- 5 Hz (auto sensing)
Input Connections
Hard Wire 3-wire (2PH + G)
NEMA L6-30P (30A Twist-Lock)
Cord Length
6feet (1.83meters)
Input voltage range for main operations
155 - 276V

Batteries & Runtime

Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules
1
Available Battery Module Slots
4
Typical recharge time
4hour(s)
Replacement Battery
SYBT2
Replacement battery cartridge note
UPS accepts 1-4 additional battery packs
Runtime Graph
Curve Part Number(s)
A SYH2K6RMT-P1
B SYH2K6RMT-P1
+ (1)SYBT2
C SYH2K6RMT-P1
+ (2)SYBT2
D SYH2K6RMT-P1
+ (3)SYBT2
E SYH2K6RMT-P1
+ (4)SYBT2
