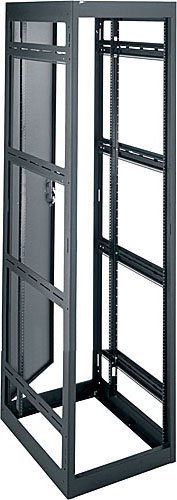

MRK Series 19" Gangable Enclosures. Narrow Design for Large-Scale Multi-Bay Jobs.
Middle Atlantic MRK-4036 Features:
- Fully welded construction, open sides
- UL Listed in the US and Canada
- Fully welded construction provides:
Static load capacity: 10,000 lbs.
UL Listed load capacity: 2,500 lbs.
Seismic Certified load capacity: 1,050 lbs.
- Seismic certified (UBC 1997 & CBC 1998 Zone 4; IBC 2000, IBC 2003, ASCE 7 - 02, NFPA 5000 Seismic Use Group III) for protecting 1050 lbs. of essential equipment when used in conjunction with our MRK-Z4 brackets
- OSHPD approved for fixed equipment anchorage in California healthcare facilities
- Slim 22" OD width
- 1/2", 3/4", 1" and 1-1/2" electrical knockouts found on removable split rear plates, top knockout plate additionally includes UHF/VHF Antenna knockouts
- Available in 4 depths: 26.5", 31.5", 36" & 42 "
- 2 pairs of wider rackrail provide more interior room
- Laser-cut 1/8" thick internal steel braces for strength
- 14-gauge steel tops & bottoms, 16-gauge seamless steel sides
- Grounding and bonding stud installed in base
- Configurable open top accepts a number of top options
- Keylocked solid rear door standard
- Finished in a durable black textured powder coat
Middle Atlantic MRK-4036 Specifications:
- Racking Height: 70" (40 Space)
- Overall Height: 76-1/8"
- Depth: 36" Outside Depth (33.6" Useable)
