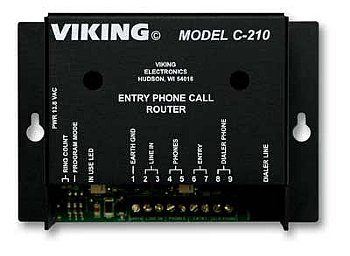

The C-210 allows single line telephones or a telephone system to share a phone line with a single Viking entry phone. Tenants may answer an entry phone call and converse with the visitor.

Use in conjunction with the Viking K-1900-5 dialer to make an outside call if there is no answer on the inside phone.

The C-210 provides a "Call Waiting” tone when the phone line is in use.

Tenants may call out to the entry phone for monitoring purposes.



Applications Add an entry phone to your standard home or office phones to provide door communication Provide commercial or residential security via two-way handsfree communication at the door or gate Connects in series with a single phone line or to a phone system’s unused line input (loop start trunk input)

Features Must be used with a Viking K-1900-5 dialer Allows single line telephones or a telephone system to share a phone line with a door entry phone House phones ring with C.O. line cadence or distinctive ring when the entry phone "Call” button is pressed Compatible with these Viking entry phones: - E-10A, E-20B, E-30, E-35, E-40 and E-50 Phones - K-1500-7 Stainless Steel Panel Phone - Or use with any analog phone Produces "Call Waiting” tones if the entry phone is activated when the house phones are already on a call

Specifications Power: 120VAC / 13.8VAC 1.25A, UL listed adapter provided Dimensions: 133mm x 104mm x 44mm (5.25" x 4.1" x 1.75") Shipping weight: 0.9kg (2 lbs.) Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95% non-condensing humidity Ring Output: 5 REN, capable of ringing (10) 0.5 REN phones Talk Battery: 32V DC Connections: (9) cage clamp screw terminals and (1) RJ-11
