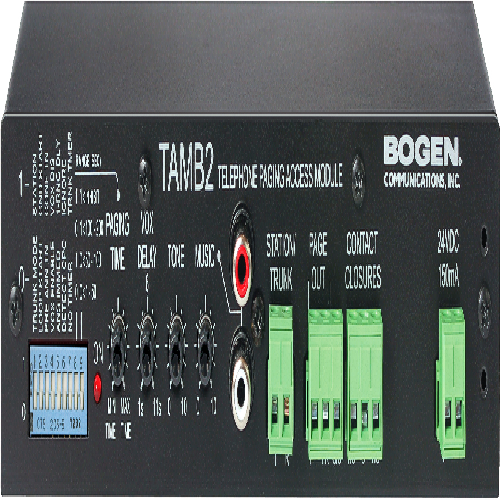

TAMB2 (TAM-B2) discont replaced by UTI1 and RPKUTI1

Our Products: Paging/Speakers/Horns > Other
SKU: TAMB2
Brand: Bogen
SHIPS:UTI1 and RPKUTI1
UPC: 765368200584
List Price: $609.00
Price: $320.00
You Save: $289.00 (47%)
Add to Wishlist Add to Wishlist
TAMB2 (TAM-B2) discont replaced by UTI1 and RPKUTI1
TAMB2 (TAM-B2) discont replaced by UTI1 and RPKUTI1
Previous Item Previous Item   Next Item Next Item
Product Details
The UTI1 Universal Telephone Interface provides single-zone paging for one-way applications such as self-amplified speaker systems. It is compatible with all standard analog port types and includes two audio outputs with level controls  each of which can provide audio for 150 Bogen self-amplified speakers. A 24V DC @ 1A internal power supply is available to power external equipment.  - Single-zone paging - Telephone interfaces: loop start trunk  ground start trunk  station access (analog ring-up)  page port contact closure activation  page port voice activation - Simple 2-switch interface setup - Override paging (using loop start trunk or page port contact closure activation) - Programmable activation of AUX contacts - C-form contact - Two audio outputs (Page Only and Page with Background Music) both with level controls - Each output can provide audio drive for 150 selfamplified speakers - High impedance transformer-isolated background music input with volume control - Variable music mute - Night Ringer (contact closure activation) - Tone Trigger (tone and duration selectable  closureactivated) - Tone burst (2 to 7 sec)  chime  and slow whoop tone selections - Pre-Announce/Confirmation Tone - Adjustable output limiter with threshold control and active indicator - Programmable timers control page duration (station and trunk) - DTMF programming - DTMF Block to help suppress DTMF tones over paging system - Non-volatile memory for setup data (no backup battery required) - Setup Tone to assist in volume setting - Pluggable terminal strips - Microcontroller-based operation - Wall mounting flanges - Rack panel kit with security cover available (RPKUTI1 sold separately) - Two-Year Warranty





SHIPS:

UTI1 24V Universal Telephone Interface  Single Zone



RPKUTI1 Rack Mount and Security Cover (UTI1)
24V  Rack Mount & Security Cover for UTI1
