VCAM-1IR

Our Products: IP/Network Camera’s > CCTV
SKU: VCAM-1IR
Brand: Viking Electronics
Viking Electronics Compact Color Video Camera Kit, Day/Night OLP
UPC: 615687224702
List Price: $342.81
Price: $225.93
You Save: $116.88 (34%)
Add to Wishlist Add to Wishlist
VCAM-1IR
VCAM-1IR
Previous Item Previous Item   Next Item Next Item
Product Details

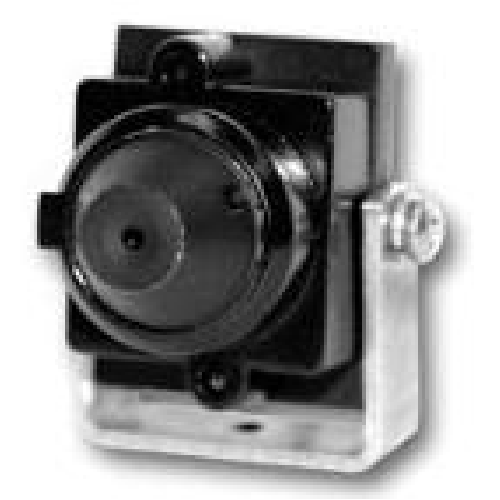

Compact Color Video Camera Kit

Compact Color Video Camera Kit, Day/Night OLP

Applications
  • Door entry
  • Gate entry
  • Covert surveillance
Features
  • Extreme temperature rating: -40°F to 185°F
  • Color composite video output for versatility
  • Wide 70° viewing angle
  • Tilt and swivel adjustment
  • Stainless steel mounting hardware included
  • Potted circuit board for weather resistance
  • 420 lines of resolution
  • 6V DC adapter and wire connectors included
Specifications
  • Shipping Weight: 13.4 g (0.036 lbs)
  • Operating Temperature: -40°C to 85°C (-40°F to 185°F)
  • Connections: (3) gel-filled butt connectors (3M Scotchlok UR2)

    Electrical
  • Image Sensor: 1/4” color CMOS
  • Active Pixels: 640 x 480 @ 30 fps
  • Resolution: 420TVL
  • Sensitivity: 0.26 lux (20 IRE) F 2.0
  • Lens: 3.4mm pinhole, semi-conical
  • FOV (Field of View): 70°
  • Signal to Noise Ratio: 46 dB
  • Gamma: 0.45
  • Gain: Automatic 36 dB
  • Synchronization: Internal Back Light
  • Compensation: Off
  • White Balance: AWB
  • Shutter Mode: Electronic rolling shutter
  • Shutter Speed: Auto exposure or fixed
  • Frame Rate: 30 fps
  • Scan Mode: Interlaced Contour
  • Enhancement: Enabled
  • Dynamic Range: 73.4 dB
  • Iris Controls: Electronic (no DC signal)
  • Video Output: 1V p-p composite, NTSC, 75 Ohms
  • Power Input: 5-9V DC regulated (polarity protected) 6V DC adapter included
  • Power Consumption: < 150mA
  • Connector: 6 pin JST SHR-06V-S-B
  • Wire: 7” flying leads, 24 AWG stranded, yellow = video out, red = +6VDC, black = -/GND
  • Maximum Wire Run Length: 1000 ft with RG59/RG6 for video and CAT5 for power (doubled pairs) and entry phone audio. 150 ft with CAT5E for video, power and entry phone audio (longer video runs are possible by using video balun tranceivers,
  • Environmental Operating Temperature: -40°C / -40°F ~ 85° / 185°F
  • Storage Temperature: -40°C / -40°F ~ 90° / 194°F
  • Operating Humidity: 5% - 95% non-condensing
  • Mechanical Dimensions WxHxD: 26mm x 24mm x 19mm (1.03” x 0.94” x 0.76”)
  • Weight: 13.4g (0.036 lbs)
